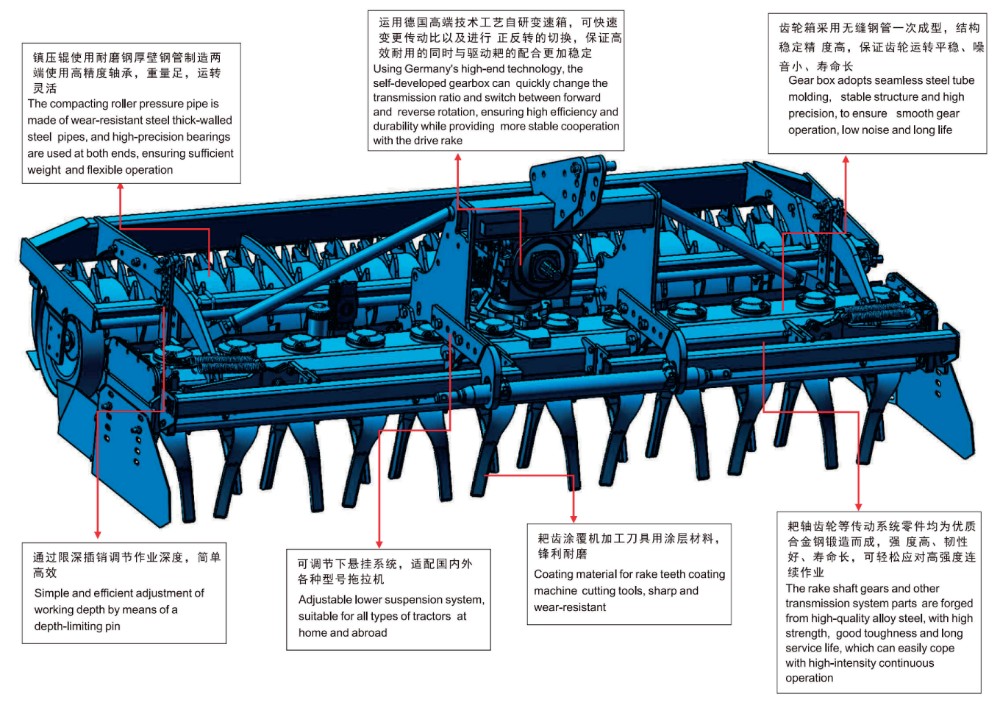

Product Features

?  The harrow shaft spacing is 25cm,with higher soil crushing rate,lower oil consumption and vibration of the whole machine;

?  The tank is of double-layer structure with higher strength and rigidity;

?  High-standard spherical roller bearings are used to provide greater bearing capacity and increase the service life by 30%compared with the widely used tapered roller bearings;

?  Equipped with anti-rock guide blocks to reduce the wear and damage of stones to the rake shaft device during operation;

?  Equipped with soil leveling rod to make the soil more flat and fine after operation;

?  The nail-tooth roller has excellent integrated functions of soil crushing,compaction and depth limit;

?  Thickened tungsten-coated rake tine have ultra-high wear resistance;

?  Quickly change the rake tine,reduce the downtime and improve efficiency;

?  The high-speed gearbox can adjust the speed ratio to change the speed of the rake tine,which is reliable and durable andcan carry large horsepower drag puller torque output.

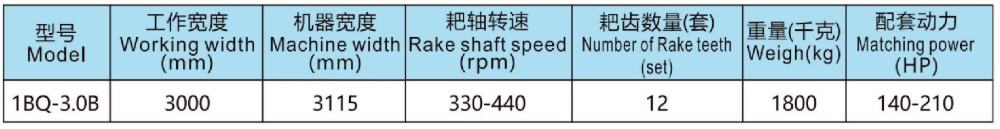

Technical Parameters
